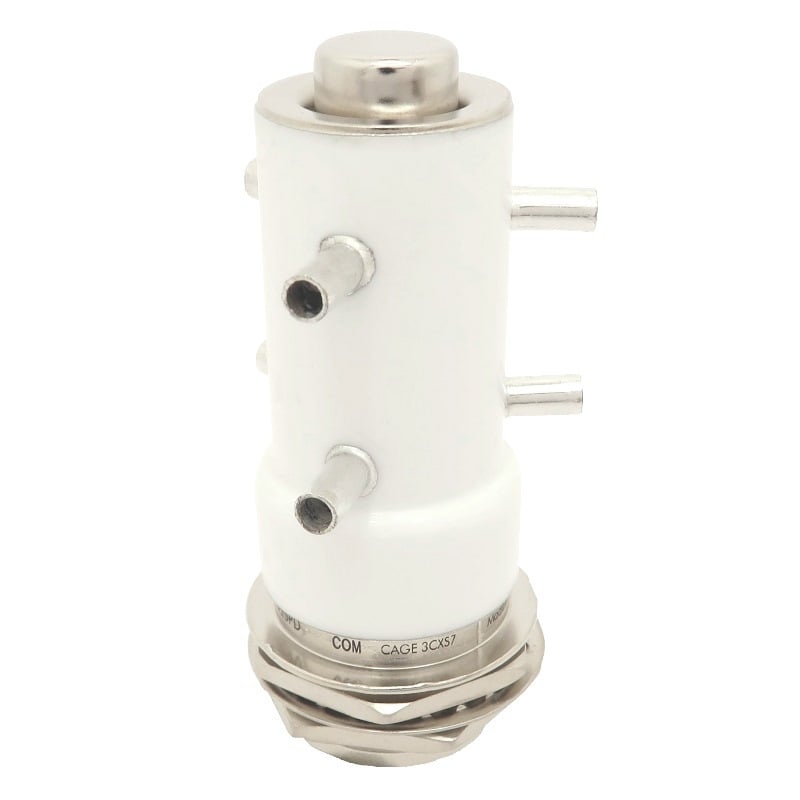

15 kV, 17 kV Peak, DPDT, 50 Amps, Gigavac G2SPD Vacuum Relay – NEW

$ 94.12

Category:
Gigavac G2SPD Ceramic Vacuum Relay, DPDT (No Load Switching) NOTE: The G2SPD is a drop-in replacement for Kilovac H-16 DPDT, Jennings RB-3 DPDT, and Greenstone V2SPD DPDT relays. Peak Test Voltage 17 kV Peak Operating Voltage 15 KV @ 60 Hz 8 KV @ 32 MHz Current Carry Amps (RMS) 50 amps @ 60 Hz 10 amps @ 32 Mhz Contact Close Speed 20 MS (Milliseconds) Contact Release Speed 8 MS (Milliseconds) Rated Life Operations 1,000,000 Important Dimensions Max Length 3.39 in / 86.00 mm Max Diameter 1.82 in / 46.00 mm Threaded Mount Base Diameter 1.13 in / 28.58 mm Weight 57.00 oz / 1600.00 g Spec Sheet Mounting Threaded base mount, supplied with two mounting nuts and lock washer. Condition Brand New, unused. Guaranteed good. Greenstone Brand Equivalent V2SPD 15 kV, 17 kV Peak, DPDT, 50 Amps, Greenstone V2SPD – NEW Running MORE Power? Checkout the Gigavac G23WF 20 kV, 23 kV Peak, DPDT, 75 Amps, Gigavac G23WF – NEW Don’t need two sets of contacts? Checkout the Gigavac G2WF (SPDT) 15 kV, 17 kV Peak, SPDT, 50 Amps, Gigavac G2WF – NEW All Double Pole Double Throw Vacuum Relays (DPDT) DPDT Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to: marine / boating, aeronautical, agriculture, construction, emergency services, etc…. We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc…
